Full hybrid systems for PCB, screen and tools cleaning
The new kolb AQUBE® systems are next-generation cleaning systems – even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and ready for the smart factory (SF ready).
kolbAQUBE® HY series offers sophisticated hybrid systems for a variety of cleaning requirements. Due to a three-tank configuration with three separate circuits the systems are able to operate with two different detergents being capable to deliver as well reliable, process safe cleaning of PCBs and hybrids, cleaning of stencils, screens and misprints and also cleaning of solder frames, carriers, magazines etc. in one single system.
These globally unique systems operate a fully automatic 4 or 5step process (1. Cleaning, 2. MediumWipe®, 3. Rinsing (tap water), 4. Rinsing (DI water), 5. Drying) and ClosedLoop water processing are extremely compact delivering best cost of ownership value.
AQUBE® HY series
Full hybrid systems for PCB, screen and tools cleaning
The new kolb AQUBE® systems are next-generation cleaning systems – even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and ready for the smart factory (SF ready).
kolbAQUBE® HY series offers sophisticated hybrid systems for a variety of cleaning requirements. Due to a three-tank configuration with three separate circuits the systems are able to operate with two different detergents being capable to deliver as well reliable, process safe cleaning of PCBs and hybrids, cleaning of stencils, screens and misprints and also cleaning of solder frames, carriers, magazines etc. in one single system.
These globally unique systems operate a fully automatic 4 or 5step process (1. Cleaning, 2. MediumWipe®, 3. Rinsing (tap water), 4. Rinsing (DI water), 5. Drying) and ClosedLoop water processing are extremely compact delivering best cost of ownership value.
Product Description
AQUBE® HY7
Fully automatic unique XL hybrid system for all cleaning tasks in electronics production
The new kolb AQUBE® series offer next-generation cleaning systems – even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-physically ready for the smart factory (SF ready).

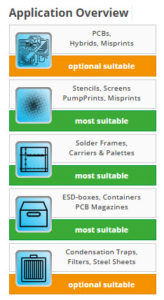

AQUBE® HY7 is a high end hybrid cleaning system. Due to its three-tank and four-circuit configuration the system can operate two different processes with two different detergents in fully separate cycles: Product fine cleaning of e.g. PCBs, hybrids or misprints as well as universal tools cleaning (screens / stencils, solder frames, carriers magazines, filter steel sheets, etc.).
The fully automatic cleaner offers short cycle times and is the perfect economic choice for varying cleaning tasks.
Highlights
- Three tank system with fourfold circuit function
- Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
- Fully automatic 3step (optional up to 5step) process: Cleaning, optional: MediumWipe®, rinsing (tap water), optional: DI-water rinsing, VMH® TurboDigital evaporative drying
- Automatic process detection when stencils are loaded
- PTFE mounted surround (vertical & horizontal rotors) rotor system with four asynchronous spray rotors
- Vertical and horizontal stencil cleaning possible
- Water free operation possible with a suitable cleaning / rinsing detergent
- Process and service intervals PLC controlled, event issuing and software control via touch screen
- EDGELESS design and VARIccess® maintenance access: maximum capacity on a very small footprint
- HT version for high temperature cleaning and rinsing up to 80 °C available
